HIMMEL Technologies – Geared Motors

HIMMEL®-gear motors are used to drive low speed machines. They are used where desired output speeds cannot be economically achieved with conventional electric motors. The gearbox and motor are assembled into a sturdy and elegant unit. The gear units can be supplied as foot or flange-mounted and, with the appropriate amount of lubricant, can be installed in any position. Electromagnetic brakes, backstops and speed monitors can be added. The design principle of geared motors achieves low noise emissions and space-saving drive solutions due to the compact size of the design. The cast iron gearbox housing is stable, vibration-damping, and designed for continuous operation. Oil leakage or ingress of dust is prevented by radial shaft seals equipped with a dust lip. All gears are milled, scraped crowned or ground and surface hardened. Helical gear teeth achieve supreme running smoothness. The maximum permissible radial and axial forces must be observed.

Neudecker-Jolitz

Download a catalogue from the Himmel Drive technology range –>**Catalogue downloads**

Parallel shaft geared motors

Bevel geared motors and bevel helical gear units

Helical worm geared motor and worm gear units

Parallel shaft geared motors and gear units in shaft mounted design with a flange, adaptor flange, splined, torque arm and shrink disk.

HIMMEL®- Parallel shaft geared motors are used to drive low speed machines. The design principle achieves low noise emissions and space-saving drive solutions due to the compact size of the design.

The cast iron gearbox housing is stable, vibration-damping, and designed for continuous operation. Oil leakage or ingress of dust is prevented by radial shaft seals equipped with a dust lip. The spur gear gears are machined and surface hardened. The tooth flanks are ground. Helical gear teeth achieve supreme running smoothness.

Features Unit Value
Power kW 0,18 to 160
Torque Nm 70 to 28000
Speed min1/rpm 0,2 to 358
Ratio   32,87 to 9117

Bevel-helical gear motors and helical bevel gear units in foot, flange and shaft mounted design with torque arm and shrink disk.

The bevel gear is machined and surface hardened. The positioning of the bevel gear stage as the second stage has a positive effect on the noise performance. The output shaft is arranged at right angles to the drive shaft.

Features Unit Value
Power kW 0,12 to 160
Torque Nm 200 to 25000
Speed min1/rpm 0,16 to 155
Ratio   9,09 to 10042



Helical worm geared motor and gear units in foot, flange and shaft mounted design with torque arm and shrink disk.

HIMMEL® worm gear motor range is differentiated by worm gear units with overhung worm shaft, worm gear units with worm shaft bearings on both sides, worm gear units with a spur gear stage and spur gear follow-on stage. Worm gear units are used for drive applications where high overall ratios and high efficiencies are required from worm gear units (up to 94%).

Features Unit Value
Power kW 0,09 to 22
Torque Nm 25 to 4400
Speed min1/rpm 0,1 to 329
Ratio   4,28 to 14126

stirnradgetriebemotor

Gear motors and gear units in foot and flange designs.

HIMMEL® helical geared motors are built in one, two and three stage designs. They are available in foot or flange design for mounting in any position. Combination foot / flange designs are available on request.

The cast iron gearbox housing is stable, vibration-damping, and designed for continuous operation. Oil leakage or ingress of dust in the gear motor is prevented by radial shaft seals equipped with a dust lip. The spur gear gears are machined and surface hardened. The tooth flanks are ground. Helical gear teeth achieve supreme running smoothness.

Features Unit Value
Power kW 0,12 to 160
Torque Nm 20 to 15000
Speed min1/rpm 0,15 to 835
Ratio   1,7 to 9435

ruehrwerkgetriebe

Special applications

Himmel® agitator gear unit motors are widely used in sewage treatment plants but also used in cosmetics, chemical, pharmaceutical or the food industry. The gear unit is generally mounted on the agitator in a vertical orientation.

As the Himmel® agitator gear units must withstand high axial and radial forces; they are equipped with a reinforced abrasion shaft and reinforced bearing as standard and therefore offer high operational safety.

Features Unit Value
Power kW 0,12 to 160
Torque Nm 20 to 15000
Speed min1/rpm 0,15 to 835
Ratio   1,7 to 9435

kuehlturmgetriebe

Cooling tower gear motors and cooling tower gear units.

HIMMEL® cooling tower gear motors serve to drive large fans for cooling industrial water or for use in air conditioning systems. Cooling tower gear motors are helical gear motors with reinforced axial and radial bearings. They are equipped as standard with a hood over the fan cover providing protection from rain and other weather conditions.

Features Unit Value
Power kW 0,9 to 75
Torque Nm 20 to 5230
Speed min1/rpm 50 to 935
Ratio   1,48 to 14,92

haengebahngetriebe

Overhead track gear motors and overhead track gear units.

A finely staged range of gear units with 6 sizes of gear unit always allows a choice of the most suitable drive and therefore offers cost advantages. Himmel® electric overhead track gear motors are designed to be modular, perfectly matched to each other and can be extended as required. They are characterized by the highest availability and a largely maintenance-free operation. The gear units are supplied as worm gears, spur and three-stage bevel gears.

They are equipped with a mechanical dog clutch that can be shifted under load. The gear units are suitable for different mounting positions.

The main applications of the electric overhead track geared motors lie in the automotive, food and packaging industries.

Features Unit Value
Power kW 0.045 to 7,5
Torque Nm 6 to 1003
Speed min1 /rpm 3 to 316

riemenverstellgetriebe

Variable speed belt gear motors and variable speed belt gear units.

HIMMEL® Variable speed belt gear motors are space-saving, continuously adjustable drives. In the standard version the central adjustment is made with a hand wheel. Unlike inverter operation the motor power remains constant and the torque increases if the speed of the motor drops. The variable speed gear unit housing has a proven symmetrical design. The adjusting pulleys have a wedge shaped symmetrical cross section with low mass. The shape of the pulleys ensures uniform flank pressure and therefore high power transmission, even at high belt speed.

The result is optimal control behaviour with uniform distribution of forces and minimal energy consumption.

Features Unit Value
Power kW 0,37 to 160
Torque Nm 1 to 1100
Speed min1/rpm 248 to 3900
Adjustment range   1:2,8 to 1:5,5

reibradgetriebemotor

Friction gear motors and friction gear units.

HIMMEL® Friction gear motors are a mechanical infinitely variable drive with a frictional force transmission for horizontal and vertical arrangement, available in nine sizes. If the output speed decreases the torque increases – this is the basic principle of the friction gear unit. Unlike inverter operation the motor power remains constant and the torque increases if the output speed of the motor drops. The infinitely variable adjustment of the friction gear unit enables gear reduction ratio as well as gear gain ratios. Friction gear units find their main applications in the textile and food industries.

The power is transmitted through one or two consecutively arranged pairs of friction wheels. The pressing force needed for power transmission is generated by a cam curve depending on the applied load. The pressure required when starting is provided by a compression spring. Actuating the adjusting device causes the effective diameter of the driving and driven cone to change. This results in a change in output speed.

For sizes L3 to L30:

Features Unit Value
Power kW 0,12 to 11,0
Speed min1 133 to 3200
Adjustment range   1:6

For sizes LK2 to LK5:

Feature Unit Value
Power kW 0,25 to 4,0
Speed min1 100 to 3200
Adjustment range   1:10

kettenverstellgetriebe

Variable chain drives (FMB-Variatoren®)

HIMMEL® Variable chain drives (FMB-Variatoren®) are mechanically infinitely adjustable all-metal belt gear units for horizontal and vertical arrangement, available in four sizes. If the output speed decreases the torque increases – this is the basic principle HIMMEL® Variable chain drives (FMB-Variatoren®). Unlike inverter operation the motor power remains constant and the torque increases if the speed of the motor drops. For example, ideal for winding drives, accumulating conveyors or conveyor belts.

The positive linkage between chain and gear wheel allows for constant speeds even with torque fluctuations and very good reproducibility of speeds. Standard variable gear units force the transmission element by applying excessive force – this is unnecessary and reduces the degree of efficiency.

HIMMEL® Variable chain drives (FMB-Variatoren®) apply a lever mechanism, which applies only as much pressure on the slat chain as necessary. This results in low operating temperatures, long life, high power density and an excellent efficiency – even in the partial load range.

Features Unit Value
Power kW 1 to 30
Torque Nm up to 3 200
Control range   up to 6
Ratio   up to 1: 30,7

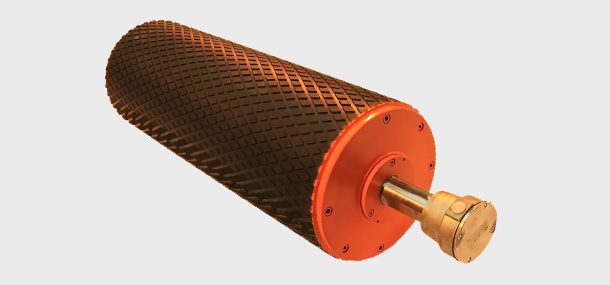

Large Power Drummotors
